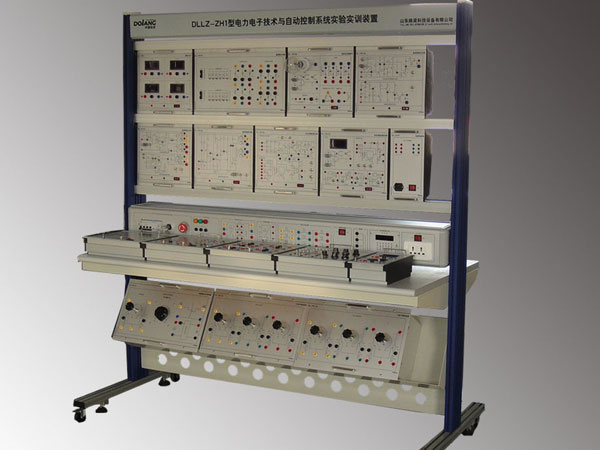

DLDZ-DLDZ01 Power Electronic Technology and Motor Control Experimental Device
Model: DLDZ-DLDZ01
On this power electronic automation control training system, students can complete the experimental projects required by professional courses, such as Power Electronics Technology or Semiconductor Converting Technology, DC Speed Regulation, AC Speed Regulation, Motor Control, Electric Drive Automatic Control System, etc.
Technical Parameters
1. Input power: Three-phase four-wire(or three-phase five-wire, 380V±10％, 50Hz)
2. Capacity: <1.5KVA
3. Dimensions: 1873mm×725mm×1622mm
4. Working environment
Temperature: -10℃~+40℃, relative humidity: <85％ at 25℃, altitude: <4000m
Experimental Projects
1. Thyristor Part
a. Single-junction transistor synchronous phase shift trigger circuit experiment
b. Sine wave synchronous phase-shift trigger circuit experiment
c. Sawtooth wave synchronous phase-shift trigger circuit experiment
d. Single-phase half-wave controllable rectifier circuit experiment
e. Single-phase half-controlled bridge rectifier circuit experiment
f. Single-phase bridge full-controlled rectifier and active inverter circuit experiment
g. Three-phase half-wave controllable rectifier circuit experiment
h. Three-phase half-controlled bridge rectifier circuit experiment
i. Three-phase bridge full-controlled rectifier and active inverter circuit experiment
j. Three-phase AC voltage regulation circuit experiment
k. Single-phase parallel inverter circuit experiment
l. Single-phase AC voltage regulator circuit experiment
m. Single-phase AC power adjustment circuit experiment
2. Full-Controlled Device Characteristics Part
n. Unidirectional thyristor (SCR) characteristic experiment
o. Gate turn-off thyristor (GTO) characteristic experiment
p. Power field-effect transistor (MOSFET) characteristic experiment
q. Insulated gate bipolar transistor (IGBT) characteristic experiment
r. Power transistor (GTR) characteristic experiment
s. Gate turn-off thyristor (GTO) drive and protection circuit experiment
t. Power field-effect transistor (MOSFET) drive and protection circuit experiment
u. Insulated gate bipolar transistor (IGBT) drive and protection circuit experiment
v. Power transistor (GTR) drive and protection circuit experiment
3. Typical Line Part of the Full-Controlled Devices
w. DC chopper circuit performance research: step-down chopper circuit, step-up chopper circuit, buck-boost chopper circuit, Cuk chopper circuit, Sepic chopper circuit, and Zeta chopper circuit
x. Single-phase AC-DC-AC with adjustable frequency principle experiment
