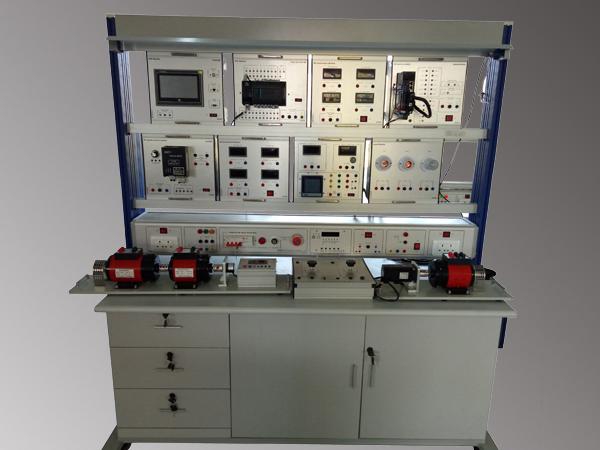

Model: DLWD-DJ01

Our DC electric motor training system is educational equipment that is work process oriented. The DC motor control is the carrier and the system also features an AC servo introduction. The training system is suitable for understanding how these motors work and they are commonly used in tools and instruments used everywhere. You will learn the basic control circuit installation and maintenance methods for DC motors. The principles of DC motor power and other basic skills will be introduced to achieve a comprehensive understanding of motor control.

Technical Parameter
Input power: three-phase five-wire AC380V ± 10% 50Hz
Working environment: -10 ℃ - 45 ℃, relative humidity <90% RH (25 ℃), altitude <4000M
Device capacity: <1.5KVA
Output power: three-phase AC380V ± 10% 50Hz, single-phase AC220V ± 10% 50Hz DC24V (2 ways)
The general power control features leakage protection. The safety device activates when the leakage current reaches 30mA.
Grid voltage instructions with 3 pcs 450V AC voltmeter information.
Training bench dimension: length × width × height: 1700 × 700 × 1750mm

DC Motor Training Experiment
1. Software Installation
2. PLC programming software and programming practice experiment
3. PLC and CANLINK Servo Communication
4. Compound Excitation Motor Electricity-Generating Experiment
5. DC Motor Speed Regulating Experiment
6. DC Motor Electricity Generating Experiment of Motors 2
7. DC Motors 1 and Motors 2 Replace Motor Experiment
