Model: DLCG-YL120

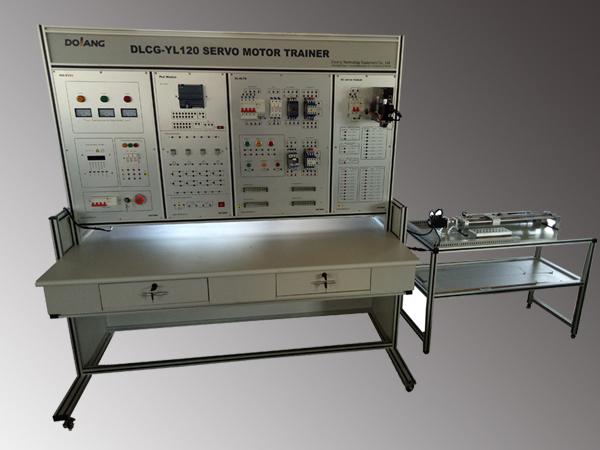

The DLCG-YL120 AC servo motor training system was designed for AC servo entry, a commonly used system in electrical tools and instruments. Using this machine, you will learn basic functions of motor installation and maintenance, along with other basic operation skills. Upon the completion of training, the users will have a strong understanding of motor control and comprehensive practical abilities.

Technical Parameter
Input power: three-phase five-wire AC380V ± 10% 50Hz
Working environment: -10 ℃ - 45 ℃, relative humidity <90% RH (25 ℃), altitude <4000M
Device capacity: <1.5KVA
Output power: three-phase AC380V ± 10% 50Hz, single-phase AC220V ± 10% 50Hz
DC24V (2 way)
The total power control has a leakage protection function built in. When the leakage current reaches 30mA, the protection device will activate.
The grid voltage indication is equipped with a 450V pointer AC voltmeter 3.
The overall length of the equipment: 2735mm, where:
Training platform length: length × width × height: 1700 × 700 × 1750mm
Ball screw small table: length × width × height: 1035 × 430 × 791mm
PLC (1214C DC / DC / DC) Parameters:
Input power: DC24V
Type: Thyristor output type

Training Contents
1. Software installation
2. AC servo JOG operation (electrical parameter detection)
3. Servo motor location control experiment
4. Speed control experiment
5. Servo wiring and parameter tuning training
6. Cognitive sensor experiment
