Model: DLWD-DJ22-M

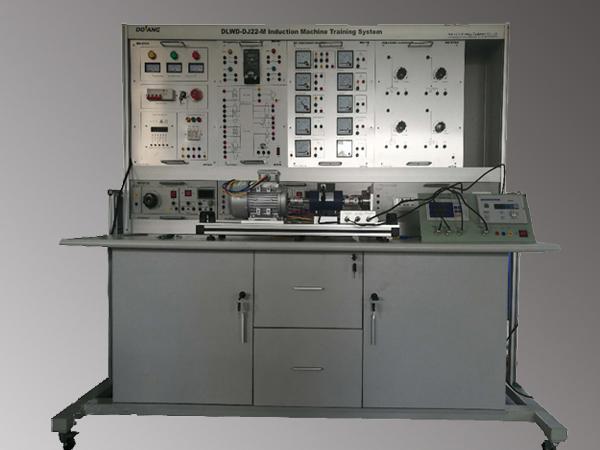

TheDLWD-DJ22-M electrical induction machine training system includes a DC motor, AC motor, single-phase transformer, three-phase transformer and a control circuit. The device allows users to learn and improve upon skills including the measurement of voltage, current, torque, speed, mechanical power, and more.

Technical parameter
Input voltage three-phase five-wire: 380V ± 10% 50HZ
Working environment temperature range: -5 ~ 40℃
Device capacity: AC power: <1.5KVA, DC excitation power supply: <0.5A, Armature power supply: <2A
Dimensions L × W × H = 1810x720x1620mm
Specification for workbench
1), Input voltage three-phase five-wire: 380V ± 10% 50HZ
2), Working environment temperature range: -5 ~ 40℃
3), Device capacity AC power <1.5KVA
The general power control features leakage protection, when the leakage current reaches 30mA, the protection device will activate.

Training Content
1. Frequency Converter Panel Control Motor Start and Stop
2. External Terminal Control Experiment Based on Frequency Conversion
3. Reverse Switch Control Motor Forward and Reverse Experiment
4. Use Star - Delta starter to Star Motor
5. Combination Switch Control Two-speed Motor Experiment
6. Contactor Controlled Motor Self-locking Experiment
7. Contactor Interlocking Motor Forward and Reversing Control Circuit
8. Dual-interlock Three Phase Asynchronous Motor Forward/Reversing Control Circuit
9. Y-△ Start Experiment Controlled by Contactor
10. Y-△ Start Experiment Controlled by Contactor
11. Three-phase Asynchronous Motor Sequence Control
12. Single-phase Capacitor Motor Start Experiment
13. Single Phase Capacitor Motor Forward and Reverse Experiment
14. Single-phase Resistance Motor Forward and Reverse Rotation Experiment
15. Switched Reluctance Motor Speed Control Experiment
16. How to Use Torque Sensor
