Model: DLWD-ETBEZMXT

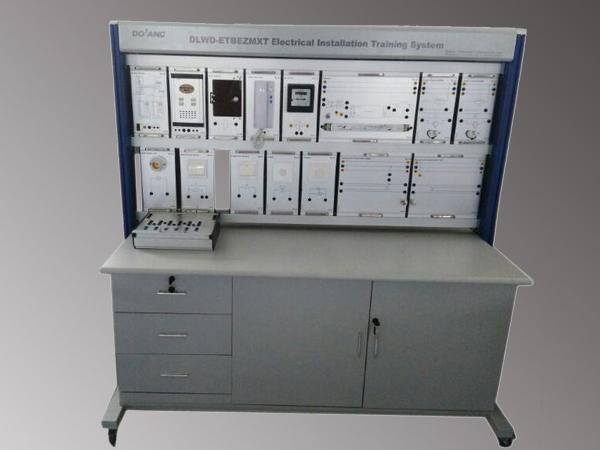

The DLWD-ETBEZMXT modular electrical installation training system was developed for educational programs and practice for electrical installations. The circuit features 4mm safety terminals and the system provides training for the handling of a two part intercom system and lighting system. The users will receive comprehensive training for external and internal intercom units for their measurement of electric power parameters, voltage, current, power, and power factors.

Technical parameters
1. Power input: AC380V, 50Hz; three-phase five-wire system
2. Power output: Necessary power module
3. Dimension: 1600 × 1370 × 1800mm (L × W × H) (the dimension may change according to actual design)
4. Capacity: ≤1.5kVA
5. Power control: The unit features an automatic on/off switch for the power supply with a short circuit and leakage protection system. The voltage value can be set according to the actual situation of the required over/under-voltage protection system.

Training content
1. Single-pole switch control circuit
2. Single switch control socket and ground fault protection circuit
3. Dimming incandescent control circuit
4. Pulse and current switch control circuit
5. Automatic stairway lighting switch (three-wire and four-wire) control circuit
6. Dual-loop control of the fluorescent lamp control circuit
7. Sodium lamp control circuit
8. High pressure mercury lamp control circuit
9. Dimming fluorescent lamp control circuit
10. 7 path switch control lamp control circuit etc.
