Model: DLWD-DJSX-T

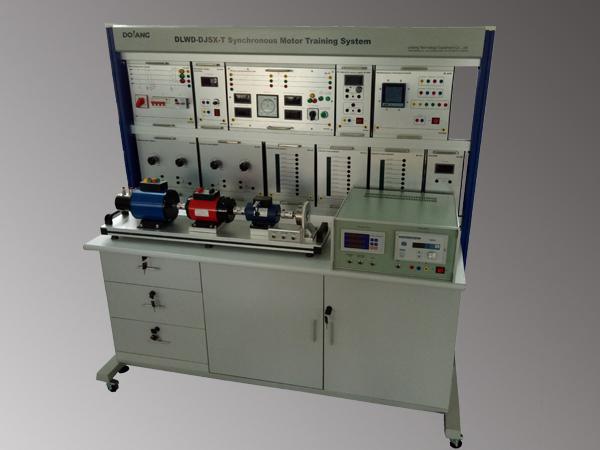

DLWD-DJSX-T synchronous motor training system is composed of three-phase synchronous motor or alternator, torque sensor, torque limiter, magnetic particle brake, tension controller, as well as all kinds of meters and electronic components. Synchronous motor training system allows the controlling towards all kinds of measurements towards three-phase synchronous motor or alternator, such as motor’s torque, output power, rotate speed, the reading of motors’ parameter changes at no load or loading condition, and etc.

Technical Parameters
1. Input power: three-phase five-wire AC380V ± 10% 50HZ
2. Working environment: temperature -10 ℃ - +40 ℃, relative humidity <85% (25 ℃), altitude <4000m
3. Power control: automatic air power switch with over and undervoltage protection, overcurrent protection, as well as a leakage protection system.
4. Output power:
(1) Three-phase AC 380V ± 10% 50HZ; single-phase AC 220V ± 10% 50HZ.
5. Dimensions: 1600mm × 700mm × 1750mm

Training Content
1. The influence of resistance, capacitance and inductance value on the power factor
2. Torque control
3. Synchronous motor control
4. Excitation system debugging of synchronous motors
5. Power generation training of synchronous generators
6. Synchronous generator control
7. DC motor control
