Model: DLXNY-GF07

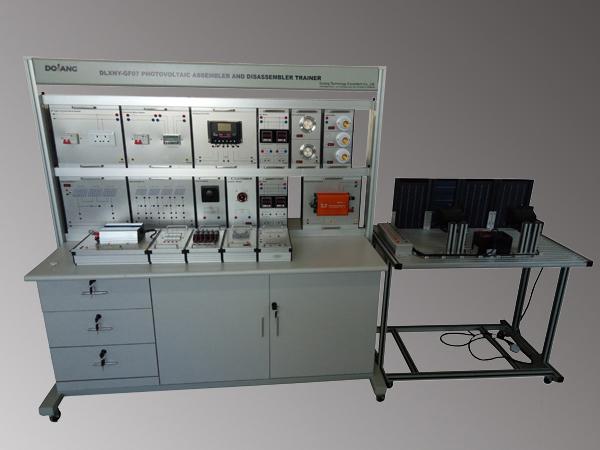

The DLXNY-GF07 comprehensive training system of solar photovoltaic power generation was developed with a modular design for simplicity. Photovoltaic power generation is easier to understand when the components can be examined individually, resulting in more effective training. The system allows for the training of wiring, component selection, and recognizing environmental conditions.

Technical parameter
Working power: AC220V 50Hz
Working environment: the ambient temperature range of -10 ~ 40℃, relative humidity ≤ 85% (25℃), altitude <4000m
Total power control, with leakage protection function, when the leakage current up to 30mA, the protection system action.
Maximum power consumption ≤ 2.0KW

Training contents
1. Principle of solar cell power generation experiment.
2. Energy conversion experiment of solar photovoltaic panels.
3. Influence of environment on photovoltaic conversion.
4. Experimental study on direct load characteristics of solar cell photovoltaic system.
5. Training of solar controller working principle.
6. Reactive protection of photovoltaic power generation system experiment.
7. Experiment on overcharge protection of battery by solar controller.
8. Experiment on over - discharge protection of battery by solar controller.
9. Night anti-charge experiment.
10. The working principle of off - grid inverter.
11. Grid - connected inverter working principle.
