Model: DLXNY-ST02

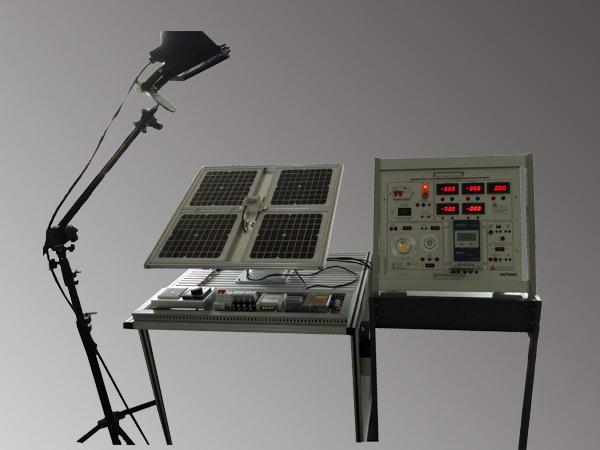

The Dolang solar photovoltaic teaching experimental platform is delivered with solar cell modules, battery modules, a solar tracking system, environmental monitoring systems, solar testing systems, solar power systems, solar inverter, monitoring instrumentation module, PC machine monitoring modules, and several other components. The solar inverter allows the user to track load regulation and control. The system is designed for higher education and vocational practice for those learning about new energy systems. The professional photovoltaic solar cell performance testing unit is a great way to learn and practice for all needs.

Technical Parameter
Solar cell panel
Quantity: 4 pcs
Open-circuit voltage: 21.5V (parallel connection), (series connection)
Short-circuit current: (parallel connection), 0.72A (series connection)
Automatic tracking unit
Biaxial automatic tracking Precision: 0.5°
Horizontal rotation angle: 360°, Elevation angle: 180°
Illuminometer
Measuring range: 200Lx, 2000Lx, 20KLx, 200KLx automatic gear shifting
Minimum resolution: 0.1Lx

Training object
1 Solar cell power generation principle experiment
2 Photovoltaic panels energy conversion experiments
3 Environmental impact of photovoltaic conversion experiments
4 solar photovoltaic system directly load characteristics test
5 Solar controller working demo
6 reverse protection experiment
7 solar controller battery overcharge protection experiments
8 solar controller battery over-discharge protection experiments
9 anti-anti-charge at night experiment
10 off-grid inverter working demo
11 automatic tracking demonstration solar photovoltaic panels
12 Illuminometers use
