Model: DLXNY-GF05-Ⅱ

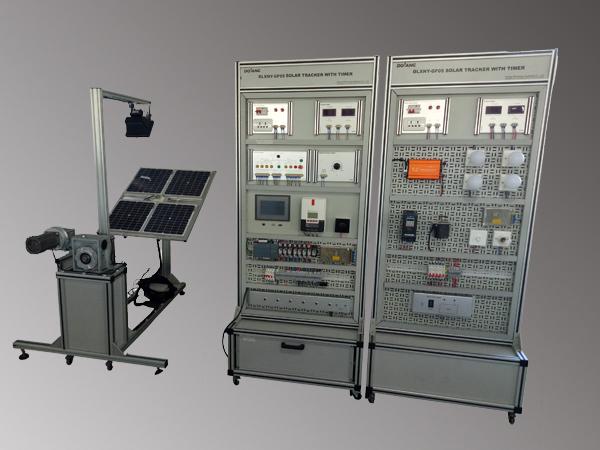

The DLXNY-GF05-ⅡPhotovoltaic power generation training system is multiple pieces of equipment that include a photovoltaic power supply device, photovoltaic power supply system, inverter, and load system components. The solar power generation system features a modular structure and each system operates independently from the others. They can be combined into a comprehensive photovoltaic power generation training system.

Technical parameters
(1) The main parameters of photovoltaic modules
Rated power: 20W
Rated voltage: 17.2V
Rated current: 1.17A
Open circuit voltage: 21.4V
Short circuit current: 1.27A
(2) the main parameters of the projection lamp
Voltage: AC220V
Rated power: 500W
(3) the main parameters of light sensors
4 quadrant
(4) the main parameters of the level, pitching gearbox
Reduction ratio: 1: 80
(5) the main parameters of the pendulum gear box
Reduction ratio: 1: 3000

PV power supply system training content
1. PV power supply system wiring.
2. Light sensor.
3. Photovoltaic battery module light source tracking control program design.
4. Photovoltaic battery output characteristics.
5. Charging characteristics of the battery and discharge protection.
