Model: DLXNY-ST03

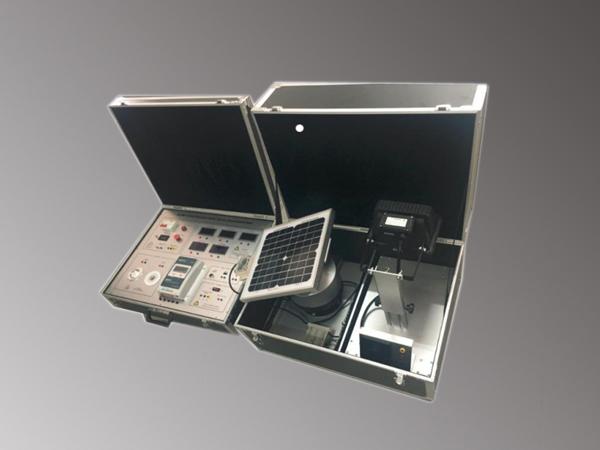

The DLXNY-ST03 portable solar power generation training box is made up of a case that contains a photovoltaic power supply device, solar power supply system, an inverter, and load system components. It features a modular structure and outstanding independent functionality. It integrates directly into solar power generation training programs.

Technical Parameter
Total dimension: 470×560×260mm
Accumulator capacity: 12V/7AH
Input voltage: AC220V/50Hz/60Hz
Working environment: 0℃ ~ 40℃, ≤85% RH
Solar cell module: Power: 10W, Voltage: 18.0V, Current: 0.56A
Open-circuit voltage: 22.30, Short-circuit current: 0.60A
Solar controller: Rated Output Voltage, Current: 12V/2A; Battery overcharge protection: 14.40±0.2V, recover: 13.8±0.2V; Battery discharge protection: 10.80±0.2V, recover: 12.5±0.2V; Two output modes: Common on/off mode, Electric on/off mode.
Inverter
Rated input voltage: 10~15V; Rated output voltage: AC220V±10%, 50Hz/60Hz; DC5V Output wave: Sine wave
Rated output power: 150W; Low voltage shut down: 9V~10V; Overpressure shutoff: 14.5~15.5
Temperature protection: ≥65℃; Transfer efficiency: >90%
Protection function: overload, overvoltage, short circuit, low tension, high temperature, reverse
