Model: DLPLC-YLJC3

Overview of the Temperature Pressure Training Workbench

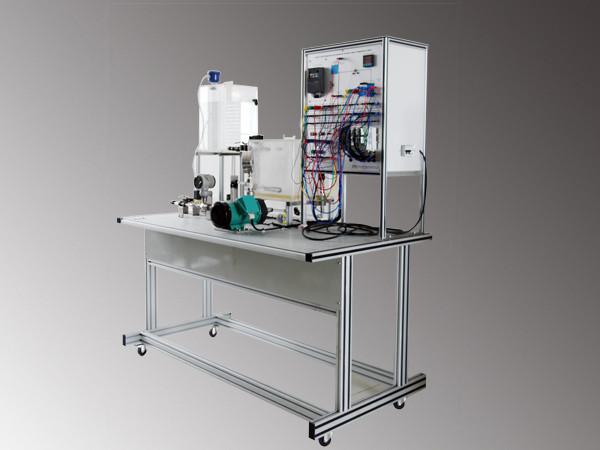

The DLPLC-YLJC2 temperature and pressure test training system includes the training bench, training units and control panels.
The control panel is the center of the entire control system and mainly consists of a rocker switch, switching power supply, PLC module, intelligent instruments, temperature transmitters and pressure regulator modules. Its role is to collect a variety of analog and switch signals to calculate, process, and convey the calculating results to actuating equipment to control.
The control system includes PLC control systems and supporting smart instruments.

Technical Parameters of the Temperature Pressure Training Workbench
Input power: single-phase, three-wire AC 220V±10% 50Hz/60Hz Operating power: DC24V 3A
Environment temperature: -10℃~ 40℃ Environment humidity: ≤ 90% (25℃)
Total dimension: 1000×750×1560mm
Capacity: ≤ 2.5KVA Electric logic: NPN or PNP
Occupancy PLC I / O points
Switch input points: 8 way (DC24V) Switch output points: 6 way (DC24V)
Analog input points: 3 way (Current type/voltage type)
Analog output points: 1 way (Current type/voltage type)
Optional Components of the Temperature Pressure Training Workbench
HMI Computer table

Training Content
Training 1 Circuit connection of temperature pressure training system
Training 2 Programming of temperature pressure system
Training 3 Comprehensive training content of the system
