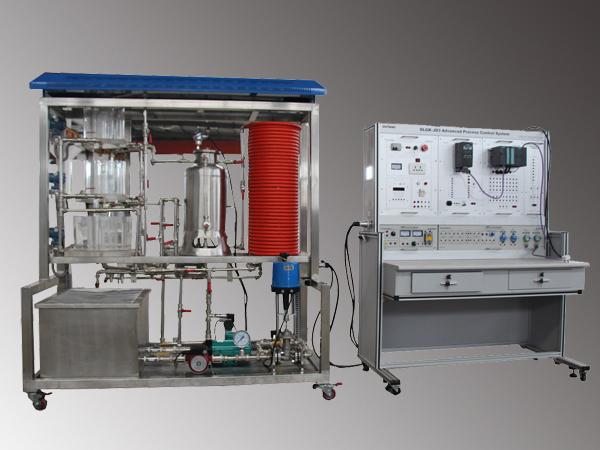

Model: DLGK-JD3
The advanced process control trainer is mainly produced to construct the engineering practice base in the laboratory based on the key technology and the important equipment of the enterprise automation and information system. It lays great emphasis on engineering approach, practicalness, and openness. The advanced process control training system is applicable for laboratory course. In the meantime, it also provides platform for the students to conduct engineering training, graduation design, and practicum.
Use
1. The advanced process control trainer is specially designed to improve the operational ability and the employment competitiveness of the student.
2. It helps the student to construct system concept through basic automated experiment with the experimental object and the basic control system.
3. Our experimental equipment provides advanced practical teaching and scientific research method for the teacher, which reflects the characteristic of the typical technology and the equipment of the enterprise automation and information system.
4. The four main sensing devices widely used for thermal parameter measurement for temperature, flow, pressure and level can be perfectly designed for related experiment.
5. Since the process control automation is realized through the control of the software on the hardware, our advanced process control trainer is particularly offered to construct the networked process control experimental system, to provide the platform for theoretical research. So teachers can get experimental data support for their theoretical research.
| Power Supply | 3-phase 4 wire 380V±5% 50/60Hz |
| Overall Dimensions | 800×600×2100 |
| Installed Power | <5KVA |
| Control Signal | Voltage: 1V-5V |
Features
1. The advanced process control trainer is made of stainless steel. In addition to the nice appearance, the perfect engineering system constructed makes the product widely seen in the laboratory.
2. It supports synchronous multiple data acquisition, such as data acquisition on liquid flow, temperature, and pressure.
3. The two control systems can be used for monitoring, simultaneously.
4. In addition to little water leakage and rust, the engineering experimental device is characterized by stable operation and low noise.
5. Copper solenoid valve is adopted as the water valve for the advanced process control trainer.
6. The controlled object is separated from the electrical system controller, to avoid accident caused by liquid leakage.
7. The system is particularly designed with four water tanks.
| No. | Name | Quantity | Note |
| 1 | Process control system | 1 set | Including bus instrument |
| 2 | DLGK-JD2 control system | 1 set | Including CPU, I/O modular, voltage and current displayer, wire connector |
Training Content of Advanced Process Control Trainer
1. PA sensor calibration (zero shift and range adjustment)
2. Loop selection and loop connection control
3. Test on the property of the system with single self-balancing water tank
4. Test on the property of the system with double self-balancing water tank
5. Stepping control on the water temperature of the boiler liner
6. PID control on level for the system with single water tank
7. PID control on level for the system with double water tank
8. Fixed set point control on water temperature of the boiler liner (dynamic water)
9. Fixed set point control on water temperature of the boiler water jacket (dynamic water)
10. Flow fixed set point control of electromagnetic flowmeter
11. Cascade control on the level of the upper and low water tank
