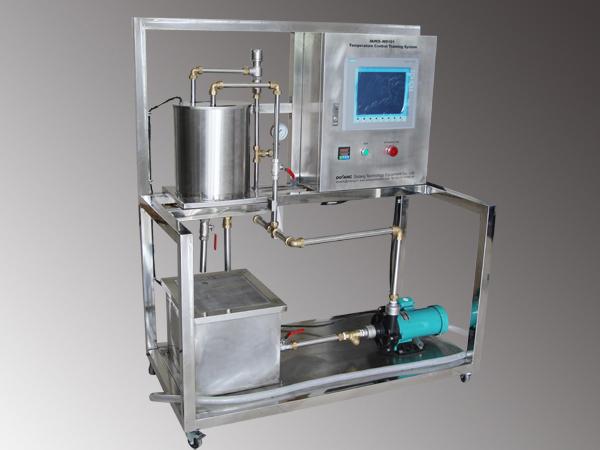

Temperature Process Control Training System

Model: DLGK-WD101

The temperature process control training system is constructed with control cabinet and process control unit. It is offered for the physical simulation of industrial process. This multi-function experimental facility integrates the PLC control technology, computer technology, communication technology, and automatic control technology. The temperature process control training equipment is mainly used for measuring and controlling the liquid temperature, helping realize multiple control modes, such as system parameter identification, single loop control, etc.

Application
Widely seen in universities, colleges, and higher vocational colleges, the temperature process control training system is generally used for student training related to the temperature process control. Apart from that, the liquid temperature process control trainer is also applicable for researcher to carry on study related to complicated control system and advanced control system.

Technical Parameters of Temperature Process Control Training System
Input Voltage Single phase 3 wire 220V±10% 50/60Hz
Installed Power AC<1000VA
Safety Protection Leakage protection (action current≤30mA), overcurrent protection, fuse protector
DC Power Supply DC 24V, less than 5A
Ambient Temperature -5°C to 40°C
Relative Humidity ≤90% (25°C)
Overall Dimension of Control Cabinet 500×200×600 (L×W×H)
Overall Dimension of Process Control Unit 1200×600×1300 (L×W×H)
