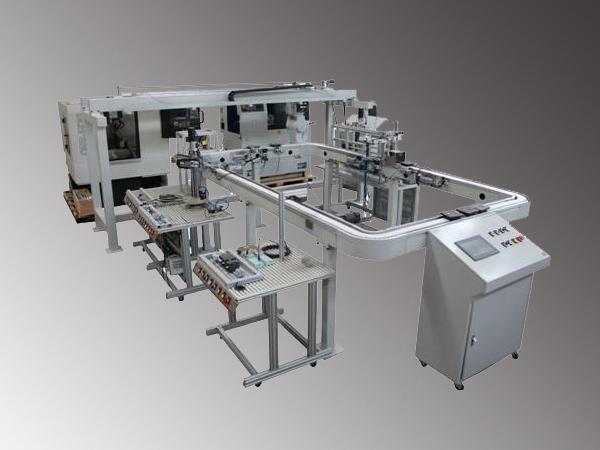

DLRB-801 Flexible Manufacturing System

Model: DLRB-801

Overview
The DLRB-801 flexible manufacturing system is divided into eight working units (workstations): CNC lathe unit, CNC milling unit, robot unit, material storage unit, manipulator assembly unit, visual inspection unit, RFID radio frequency detection unit, and a circular conveyor unit.

Technical parameters of the DLRB-801 flexible manufacturing system
Input power: three-phase, four-wire 380V±10% 50Hz/60Hz
Leakage protection: I △ n ≤ 30mA, t ≤ 0.1S
Control power supply: DC24V
Accident emergency off button, power supply indicators, power on indicator
Working environment: Temperature -10℃~ +40℃ Relative humidity 35% ~ 65% (25℃) Elevation < 4000M
Capacity: ≤ 5kVA
Pneumatic source pressure range: 0.4 ~ 0.6Mpa
Total dimension: 7500 X 5000 X 2000mm
Table height: 750mm
