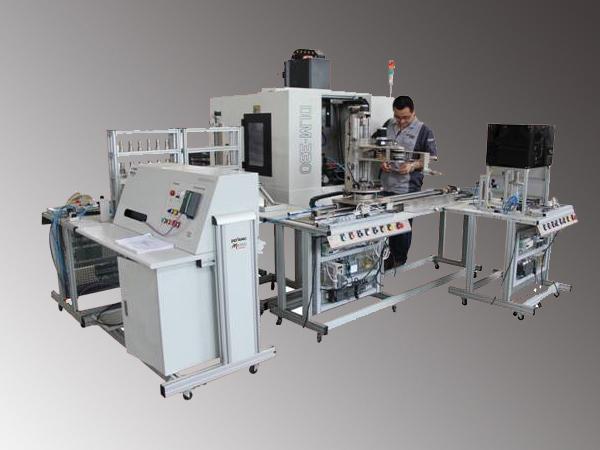

DLRB-501 Flexible Manufacturing System

Model: DLRB-501

Overview
The DLRB-501 flexible manufacturing system is divided into five working units (workstations): console unit, robot handling unit, CNC milling machine unit, raw material finished product storage unit, testing unit.

Technical parameters of the DLRB-501 flexible manufacturing system
Input power: three-phase, four-wire 380V±10% 50Hz/60Hz
Leakage protection: I △ n ≤ 30mA, t ≤ 0.1S
Control power supply: DC24V
Accident emergency off button, power supply indicators, power on indicator, protection against wrong power on
Working environment: temperature -10℃~ +40℃ relative humidity 35% ~ 65% (25℃ ) elevation <4000M
Capacity: ≤ 5kVA Pneumatic source pressure range: 0.4 ~ 0.6Mpa
Total dimension: 3200 × 3600 ×2200mm
Table height: 750mm
Robot model can be optional according to requirement

Optional
CNC milling machine
