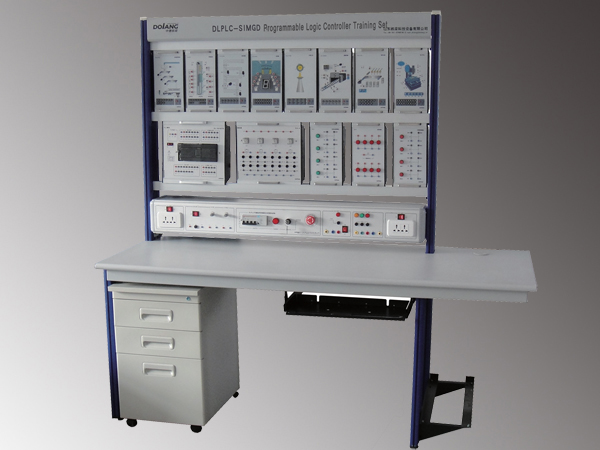

Model: DLPLC-SIMGD

Technical parameter of the programmable logic controller training set
1．Input power: three phase five wires AC380V±10％ 50HZ
2．Working environment: temperature -10℃－+40℃ relative humidity <85％（25℃） altitude <4000m
3．Power control: automatic air switch power-off power with overvoltage protection, undervoltage protection, overcurrent protection, and leakage protection.
4．Output power:
（1）Three phase AC 380V±10％ 50HZ , single phase AC 220V±10％ 50HZ
（2）Voltage stabilized DC power: 24V/1A， 3 bits semi digital display DC voltage and AC voltage, with function of limited flow type short current soft protection and self recovery.
5．Outline dimension: 1800mm×700mm×1675mm
6. PLC:
Siemens PLC S7-1200

Optional
Mitsubishi analog module, complete analog experiments.
Network module, can provide two kinds of network frequency inverter and three phase asynchronous motor, complete frequency control of motor speed corresponding experiments.
