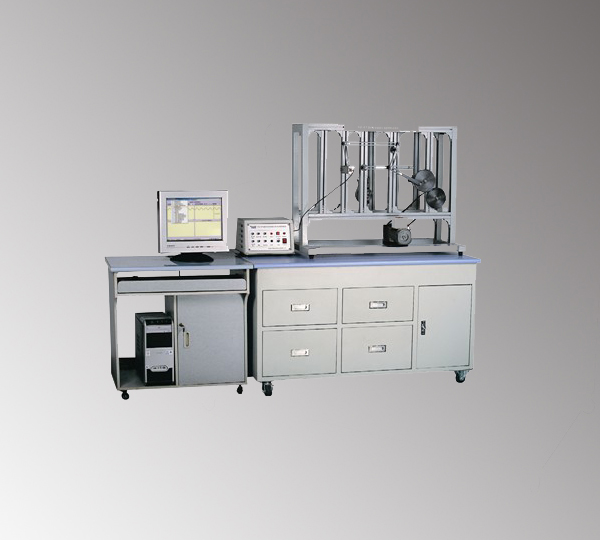

Mechanism Motion Innovation Design Bench

Model: DLJX-DCX

Overview of the mechanism motion innovation design bench
The training bench frame uses two ways: single-side four-units/set or double-sided units/set. It also uses an aluminum alloy structure, composed of AC geared motors (with the governor), stand, motor, belts, pulleys, gears, cams, sheaves, driving plate, lever, and components kits, a variety of high / low side, rotary deputy, as well as vice-move other components.

Technical parameters of the innovation design bench
Input power: single-phase, three-wire, 220V±10% 50Hz/60Hz
Working environment: Temperature -10℃~ 40℃
Relative humidity≤ 85% (25℃) Elevation≤ 4000m
Total dimension
Frame shape size: 1000×360×760mm
Experiment table shape size: 1780×730×760mm
Power control box dimensions: 250×165×155mm
Safety protection: with voltage leakage and current leakage protection, safety meets the national standards.
