Model: DLJX-ZW-II

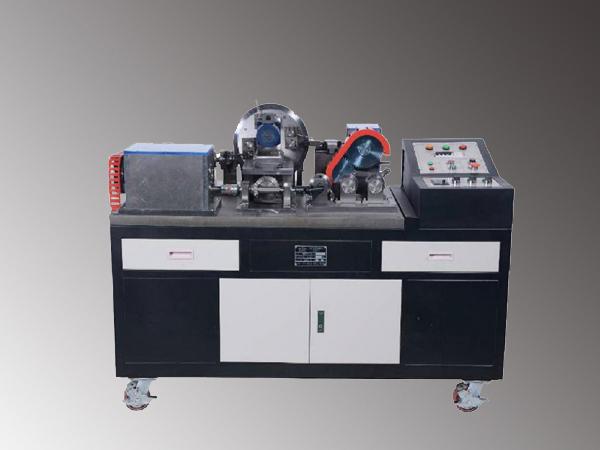

Overview of the installation and maintenance comprehensive training platform
The comprehensive training platform can complete the preparation of the mechanical equipment knowledge chart and assembly process, debugging and adjustment of assembly parts and combined machine tools, as well as typical machine tools and machine components assembly and assembly quality detection, equipment commissioning, operation and try processing.

Technical parameters of the comprehensive training platform
Input power: three-phase, four-wire (or three-phase, five-wire) AC 380V±10% 50Hz/60Hz
Working environment:
Temperature: -10℃ ~ 40℃
Relative humidity: ≤ 85% (25℃)
Elevation: ≤ 4000m
Three-phase asynchronous motor: Voltage AC 380, Power 60W
One AC speed regulation and reduction motor: Rated power 90W, reduction ratio 1:25, Speed is adjustable
One AC gear motor: Rated power 40W, reduction ratio 1:3
Total dimension:
Workbench: 1500×700×1175mm
Operation bench: 900×700×1500mm
Safety protection: Has current type leakage protection, complies with the national standards
