Mechanical Comprehensive Training System

Model: DLJX-JXXT

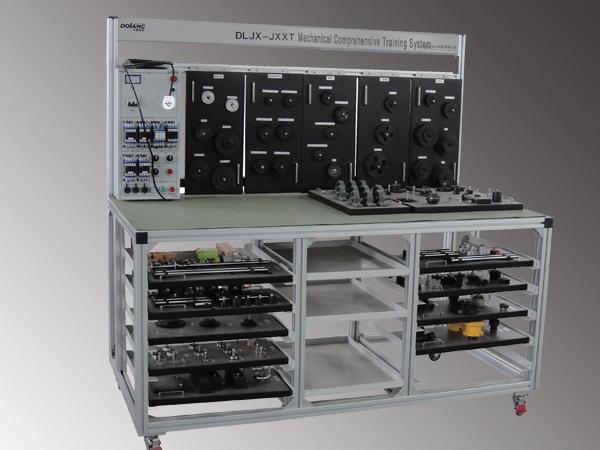

Overview of the mechanical comprehensive training system
These training sets use a desktop structure, and industrial grade components. The training device can complete training for the belt drive, chain drive, gear drive, lubrication, shaft concentricity adjustment, bearings, ball screws, gaskets and seals, clutches and brakes.
Training sets include various pulleys, sprockets, gears, belts, single-row and multi-row transmission chains, and a variety of couplings, shafts, bearings, ball screws, clutches and brakes. It also includes transmission structure components that are widely used in industrial production, and feature a full range, modular design, and easy, flexible usage.

Technical parameters of the mechanical comprehensive training system
Input power: single-phase, three-wire AC 220V±10% 50Hz/60Hz, three-phase, five-wire AC 380V±10% 50Hz/60Hz
Work environment: temperature -10℃ ~ 40℃ Relative humidity≤ 85% (25℃) elevation≤ 4000m
Total dimension: about 1845×700×1700mm
Safety protection: leakage voltage and leakage current protection, security in line with national standards

Optional components of the mechanical comprehensive training system
Prony Braking Module
Bearing module 1
Bearing module 2
Ball screw and linear bearing module
Coupling module1
Seal module
Coupling module 2
clutch and brake modules
The lubrication module
3D virtual simulation software: The software features mechanical principles and design practices (DLSoft-Mts software of mechanical principle and design practice). The software includes a variety of pulleys, sprockets, gears, belts, ball screw bearings, clutches and brakes and other modules. Each module has automatic entry, manual disassembly, run display and other respective functions.
