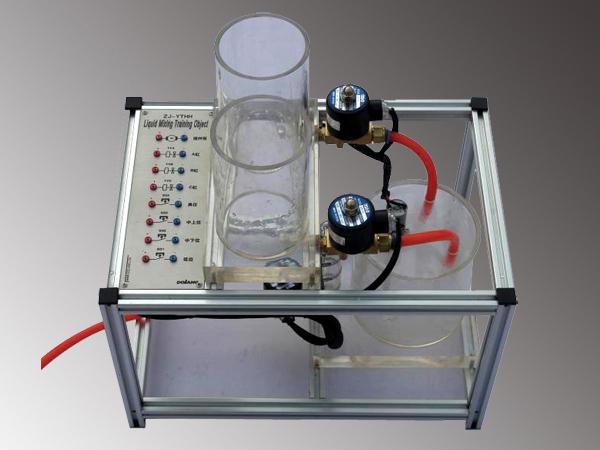

Overview of the liquid mix training set
The liquid mix training device set PLC, water level sensor, solenoid valve combination in one of the training system, through the sensor signal acquisition, PLC programming, more complex position control for solenoid valve, water pump and dc reduction motor for switch quantity control, temporal logic control, and realize liquid level switch and closed loop automatically management function.
1. Single step control experiment
2. Automatic step sequence experiment
3. Regular operation experiment
4. Continuous mixing experiment
