Model: DLPCB-DM300
The DLPCB-DM300 engraving machine is applicable to the fast production of circuit boards in small quantities in the laboratory.
Functions
1. Processing capacity of drilling, milling, as well as producing blind holes and slots
2. Produce digital, analog, mixed digital-analog, RF and microwave circuit boards
3. Produce PVC, organic glass or aluminum panels and nameplates
4. Engrave flexible polyimide material
5. Dig blind slots on a microwave circuit
6. Control the engraving depth accurately
7. Repair and cut the circuit board on which components have been mounted
| Min. conductor width/spacing | 0.1mm(4mil) |
| Min. hole diameter | 0.2mm (8mil) |
| Processing format | 305mm×230mm |
| Spindle speed | 60000rpm |
| Repeat positioning accuracy | ≤±5μm |
| System positioning precision | ≤±20μm |
| Drilling speed | 100 time/min |
| No-load movement speed | 150mm/s |
| Max. speed of contour milling | 6mm/s |
| Power supply | 220V AC/50Hz |
Features
1. German high-speed spindle, 60000rpm
2. Coaxial depth limit function
3. 20 cutter locations, electronically controlled automatic tool change
4. Independently-developed, patent-protected automatic graver depth adjusting technology
5. Imported precision three-axis mixed linear stepper motor driver

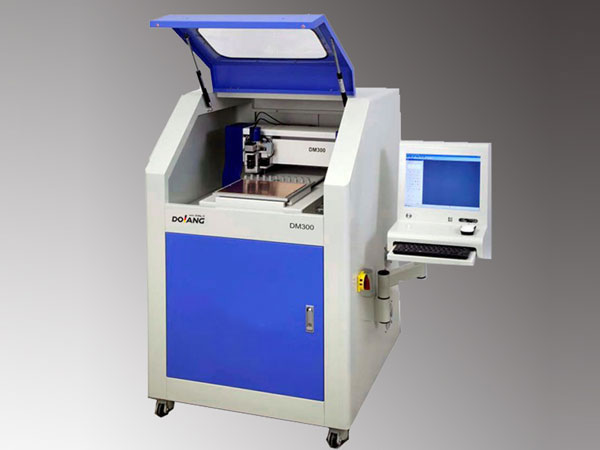

6. Our PCB engraving machine is attached with vertical hood, industrial dust collection system, high-resolution camera, diffuse reflection light source, control computer, and monitor.
