Our electronics training system can meet the experimental requirements of digital circuits and analog circuits.
Related Names
Electronic Training Kits | Scientific Educational Equipment | Electronic Supply
Electronics Training System
-
-

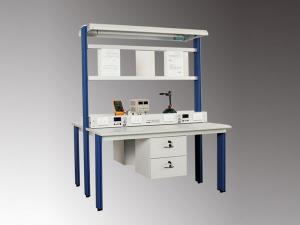

- PCB Design Training Device 1. The DLDZ-ETTE24D PCB design training device is double-sided 4-station, enabling four students to operate at the same time;
2. The power box provides 8 channels of 220V AC output;
3. Dimensions: 1400mm×1300mm ×1675mm;
4. Overall structure of aluminum frame;
-
-
-

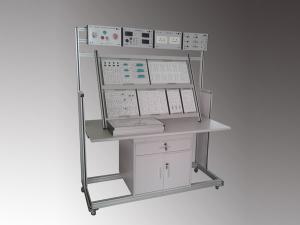

- Digital/Analogue Circuit Training System Our DLDZ-165E digital and analogue circuits training system is composed of the manipulation platform, display screen, power box, zone for placing drawings, digital and analog electronic experimental zone, and oscilloscope placement area.
-
-
-

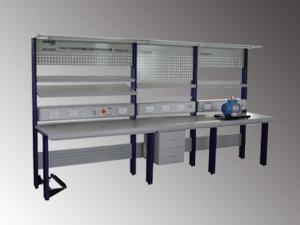

- Electronics Installation Training Device The DLDZ-ZJG03 electronics installation training device is divided into three areas, which are testing and maintenance area, installation and welding area, as well as PCB production area. In each area, there is a mesh plate installed above.
-
-
-

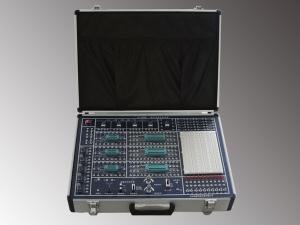

- Portable Digital Circuit Trainer The portable digital circuit trainer is a basic teaching instrument for Digital Circuit, Pulse Circuit, and other related courses. It is also one of the basic tools for research and development.
-
-
-

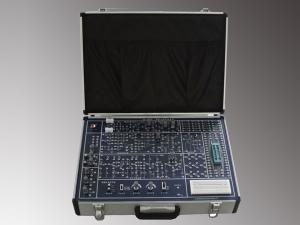

- Portable Analogue Circuit Trainer Common base amplifier circuit
Complementary symmetry power amplifier
Testing basic parameters of the integrated operational amplifier
Integrated addition operation circuit
-
-
-

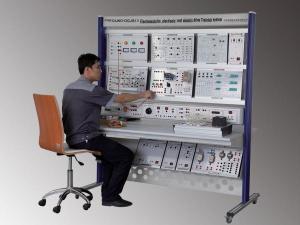

- Electronic and Electric Drive Training System for Electrotechnics This system is designed for training with and studying analog and digital electronics, circuit principles and motor drag experiments. The training system consists of two parts, a workbench (including the power control panel) and experimental modules.
-
