Model: DLYY-PH202

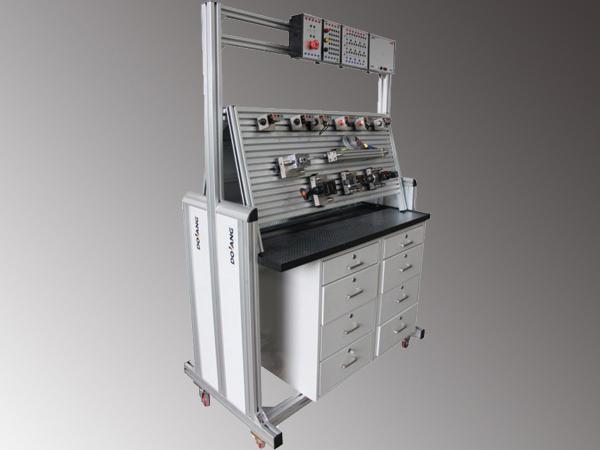

Overview of the PLC integrated transmission training system
The DLYY-PH202 hydraulic and pneumatic PLC integrated transmission training system is equipped with two different sets of training equipment pneumatic and PLC or hydraulic control.

Technical parameters of the PLC integrated transmission training system
Hydraulic unit
Power: 1.1KW Rotating speed: 1420r/Min
Voltage: 380V, 50Hz/60Hz System flow: 4.5L/min Working Pressure: ≤ 6Mpa
Pneumatic unit
Power source: AC 220V±10% 50Hz/60Hz Power: 480W
Nominal volume: 6L Noise grade: 66dB Rated pressure: 0.85MPa
Workbench
Workbench size: 1535 X 880 X 1850 mm
Aluminum panel size: 1315 (L) X 750 (W)

Optional components of the PLC integrated transmission training system
Teaching resources Hydraulic simulation software Lead frame
DLYY-FLS1 Hydraulic flip, stretching training object
DLYY-CY1 Electro hydraulic processing, stamping training object
