Wind Power Generation Training System

Model: DLXNY-FN01

Overview

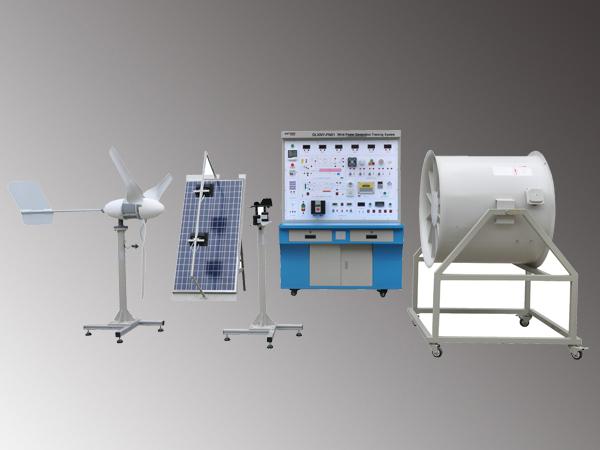

The wind power generation training system consists of the following: wind turbine, aero vane, adjustable speed blower, charge controller, batteries, off-grid inverters, AC load and DC load, DC voltage meter head, AC multi-function meter head, and auxiliary data monitoring and display module.
Wide application experiments: The experimental system offers a variety of application workloads, such as lighting, street lighting, DC fans, AC fans, and a smartphone charger.
Unique PC data acquisition interface: the environmental temperature and humidity, wind speed, wind direction, speed generator, generator output current, voltage, power and other information is displayed in real time on the PC, as well as the working status of the entire system for real-time monitoring.

Technical Parameters of the Wind Power Generation Training System
Wind driven generator Power: 400W Impeller diameter: 1.65m Start-up wind speed: 2.3m/s
Cut-in wind speed: 3m/s Rated speed: 12m/s
Anemometer
Wind speed: 0~60M/S Wind direction: 0~360° Precision: 0.3M/S3°
Working power: AC 220V, 50Hz/60Hz, DC12V optional
Others: Over speed alarm, Less speed alarm, LCD display wind speed, communication port with PC
Air temperature and humidity sensor
Temperature resolution: 0.1℃ (16 bit) Temperature Range: -40℃ ~ +80℃
Humidity resolution: 0.1%RH (16 bit) Accuracy of humidity: 3%RH (25℃), 5%RH (0~50℃)
Blower with adjustable speed Air mass flow: 4670/h Air pressure: 1275Pa-2138Pa Blower Power: 5.5KW

Experiment instruction of the Wind Power Generation Training System
Experiment 1 Wind and solar complementary experiment
Experiment 2 Wind power experiment
Experiment 3 Photovoltaic (PV) power generation experiment
Experiment 4 Hybrid PV/Wind Controller Experiment
Experiment 5 Off-grid inverter running with load experiment
