Stereoscopic Parking Equipment Training Set

Model: DLFA-LCK1

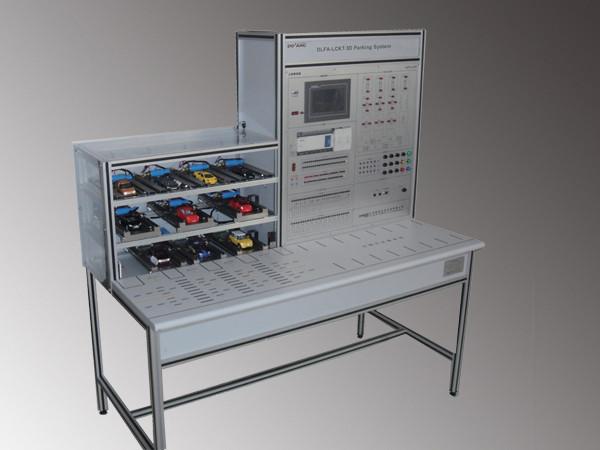

Overview of the stereoscopic parking equipment training set
This system is a miniature replication of an of actual three dimensional parking system with three-layer, ten storages. The top has four spaces, and each parking space is equipped with lift motors to control the car plate movements.
With text display and buttons, it can dynamically display parking status information, and through programming, complete the vehicle retrieval and management functions.

Technical parameters of the stereoscopic parking equipment training set
Total dimension: 1105×600×1440mm
Input power: single-phase, three-wire AC 220V±10% 50Hz/60Hz
Output power: DC 24V safety terminal output
Capacity: < 500VA

Optional components of the stereoscopic parking equipment training set
Computer, computer desk PLC module
Air compressor

Training contents
1. Stereoscopic parking training device control experiment
2. Stereoscopic parking training device control movement experiment
3. Display control experiment
4. Comprehensive control experiment
