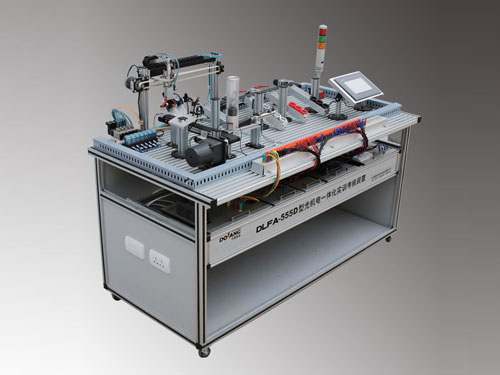

Opto-Mechatronics Training System

Model: DLDS-555D

Features
1. The DLDS-555D opto-mechatronics training system adopts a modular structure. It is composed of the PLC module, frequency converter module, touch screen module, power supply module, and sensor module. These modules can be flexibly combined to adapt to different training projects.
2. On the aluminum alloy platform, multiple components can be installed, such as manipulator, feeding mechanism, material conveying mechanism, material sorting mechanism, etc.

Technical Parameters
1. Power supply: Single phase, AC220V±10%, 50Hz/60Hz
2. Temperature: -10℃~40℃
3. Environment humidity: ≤90% (25℃)
4. Dimensions: 1500mm×750mm×1250mm(D×W×H)
5 .Capacity: ≤1KVA
6. Air pump capacity: 0.37KVA
7. Air pump gas storage capacity: 10L
8. Air pump discharge pressure: 0.6~0.8MPa
9. Working pressure: 0.6MPa
10. Weight: 75kg

Related Names
Complete Experimental Bench | Optomechatronics Trainer | Material Delivery Training Device
