Portable Combined Shaft Training Device

Model: DLJX-ZX01

Overview of the Portable Combined Shaft Training Device

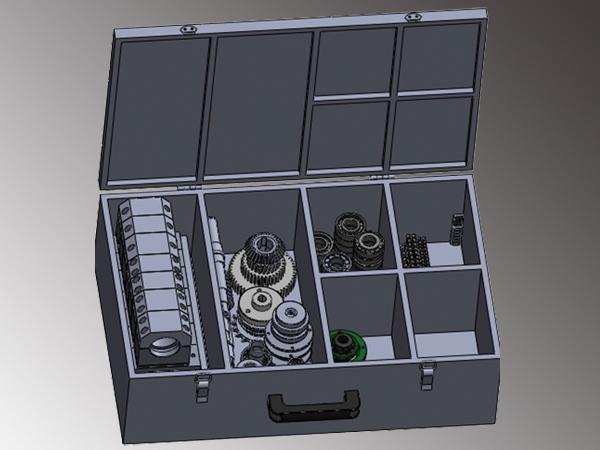

The experimental box consists of 9 categories and 50 kinds of components, including worm shaft and different structural shapes stepped shaft, such as gears, pulleys, couplings, bearing, end cover, retainer cup, sleeves, and other parts of the shaft, bearings, round nuts, shaft ring, shaft circlip, screws, nuts and other standard parts.
The components can be easily combined into dozens of shaft structure programs. They feature diverse content, and 4-6 people can share one experimental box.
Using learning simulation software, students can simulate assembly of the components through the software, as well as the notes in the installation process

Technical Parameters of the Portable Combined Shaft Training Device
Components type: 9
Components model: 50
The number of components: above 200
Overall weight: 50kg
Experimental box size: 550×350×150mm
