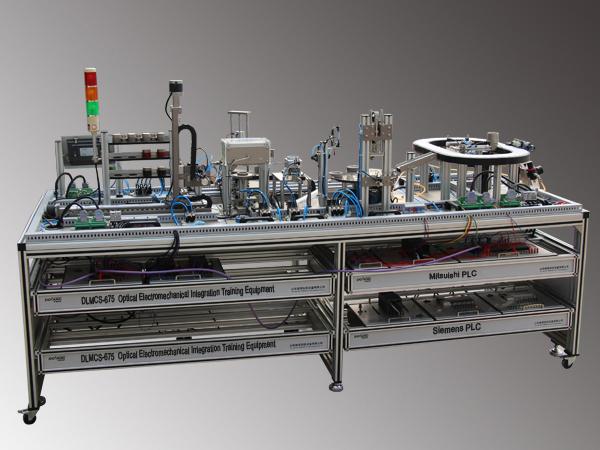

Optical Electromechanical Integration Training Equipment, DLMCS-675

Model: DLMCS-675

Introduction to the optical electromechanical training equipment
The training system control module includes a PLC module, inverter module, double-loop speed control module, TECO servo drives and servo motor module, stepper drives and stepper motor modules and other modules, as well as a controlled object feeding unit module, processing and testing unit modules, handling unit module, assembly unit module, and storage unit classification module.

Technical parameters of the optical electromechanical training equipment
1. AC Power: Single phase AC220V ± 10% 50Hz
2. Temperature: -10 ℃ ~ 40 ℃; Humidity: ≤ 90% (25 ℃)
3. Dimension: 2450mm × 910mm × 1380mm (L × W × H)
4. Machine capacity: ≤ 1KVA
5. Air pressure: 0.6Mpa
6. Stepper motors: two-phase, rated voltage DC24V, 1.8 ° step angle
7. Servo motor: Rated voltage AC220V, 400W
8. Three-phase asynchronous motor: Rated voltage AC380V, 80W, reduction ratio of 1/50
9. Separately excited DC motor: Rated voltage DC220V, 80W, 1400rpm
10. Sensor output: NPN
11. Screw pitch: 5mm stroke: 1100mm
12. Worm gear reduction ratio: 1/40
